Compact & lightweight. Easy installation, operation, and maintenance. Long-term durability.

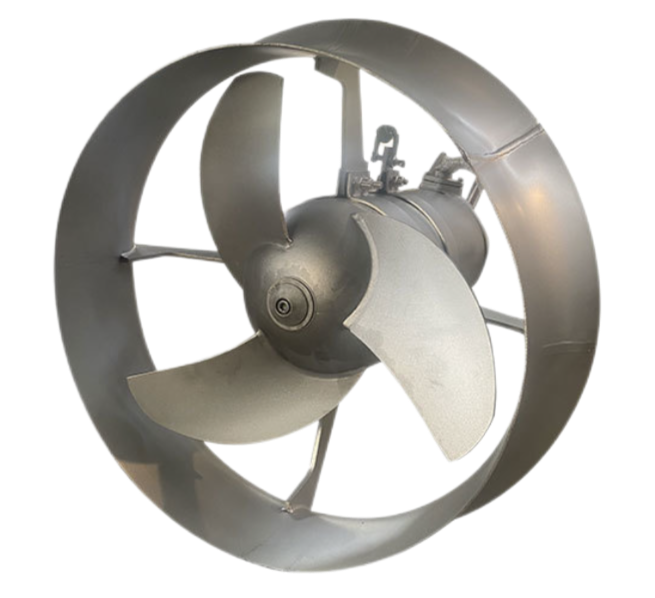

High-efficiency hydrodynamic blades with swept-back, self-cleaning design resist debris buildup for uninterrupted performance.
Unique cable sealing design eliminates the risk of cable water leakage.
Double-ended mechanical seals with corrosion-resistant tungsten carbide seal faces and all-stainless-steel fasteners.
1. Overview
The QJB series multi-functional vortex-type submerged mixer, developed by our company through advanced computer-aided design. integrates the mature technological foundation of existing submerged mixers with systematic optimization based on tens of thousands of real-world engineering operational performance data and feedback results. Focusing on key core technologies including blade design, performance optimization, reliability engineering, and mobile installation, this product breaks conventional submerged mixer design paradigms through innovative hydrodynamic component efficiency analysis and operational methodology. By implementing vortex-type cyclic agitation from multi-dimensional perspectives, it achieves comprehensive, three-dimensional mixing action to promote active fluid dynamics, ensuring more uniform, thorough, and open mixing performance compared to traditional methods, thereby significantly enhancing product competitiveness.
2. Application
Wastewater Treatment Plants
● Stormwater Tanks
● Activated Sludge Digestion Tanks
● Sludge Thickening/Storage Tanks
Industrial Applications
● Pulp & Paper Production
● Paint & Dye Manufacturing
● Chemical Process Mixing
Agricultural Use
● Manure Storage Tanks
● Biogas Digester Systems
3. Characteristics
● Compact Design & Durability
The QJB Multifunctional Cyclonic Submerged Mixer features a compact structure, small size, and light weight.It ensures simple operation, maintenance, and installation, along with extended service life.
● High-Efficient Hydrodynamic Design
The impeller is optimized with an advanced hydrodynamic structure for maximum efficiency. lts swept-back blades provide a self-cleaning function to prevent debris entanglement and clogging.
● Energy Efficiency & Enhanced Aeration
When combined with an aeration system, it significantly reduces energy consumption while increasingoxygenation levels. This prevents sedimentation effectively.
● Robust Cable Sealing
A unique cable sealing design eliminates the risk of water leakage, ensuring reliable operation.
● Advanced Motor Protection
Motor windings are F-class insulated with IP68 protection.It is Equipped with single-lubrication, maintenance-free high-quality bearings. Features include oil chamber leakage detection and motor winding overheating protection for enhanced safety and reliability.
● Corrosion-Resistant Construction
Two independent mechanical seals with carbon tungsten (WC) friction pairs for corrosion resistance.
All fasteners are made of stainless steel.
● Anti-Corrosion Technology
Standard components utilize electrolytic separation technology to prevent corrosion effectively.
